Hopper Barge – P2 Series

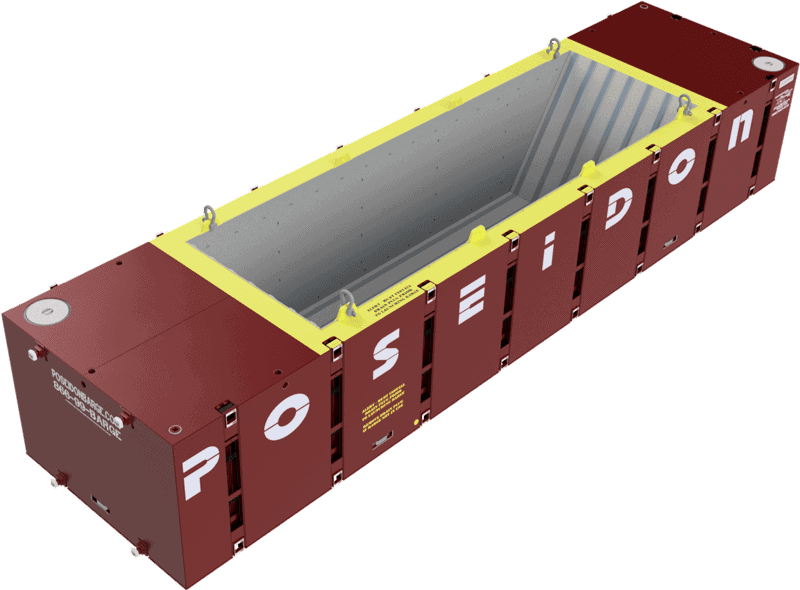

P2 Series 10′ x 7′ x 40′ Hopper Single Section

Poseidon P2 Series

P2-7 hopper barges are 10 ft wide x 7 ft tall x 40 ft long.
A single section weighs 37,500 lbs.
P2-7BP hopper barge is compatible with standard P2-7 barges. A single 40 ft x 10 ft hopper barge section can hold up to 40 cubic yards of material.
3/8″ plate thickness for inner hopper walls and bottom
Yellow safety paint around the perimeter of the open hopper bin for a visual warning for personnel to quickly see when they are nearing this zone.
A capacity of 40 cubic yards (material weight dependent)
Side drain from the interior of the hopper bin to the exterior of the barge for easy drainage once removed from the project.
Shackle mounting plates are reinforced and are 1 3/8” thick to avoid damage in the field. These shackles are used for lifting the unit for transportation or placing in the water.
Standard P2-7 barges can be connected to the Hopper sections to provide additional buoyancy for increased load capacity as required.
