7FT Tall – P2 Series
P2 Series
10′ x 40′ x 7′ Barge
Poseidon P2 Series
The Poseidon 7’ barges utilize a Male Lug and Female Connection with lock bar that are compatible with other 7’ sectionals available in the marketplace.
P2 Series Weight
- 10’ x 7’ x 40’ Barge – 33,900 lbs.

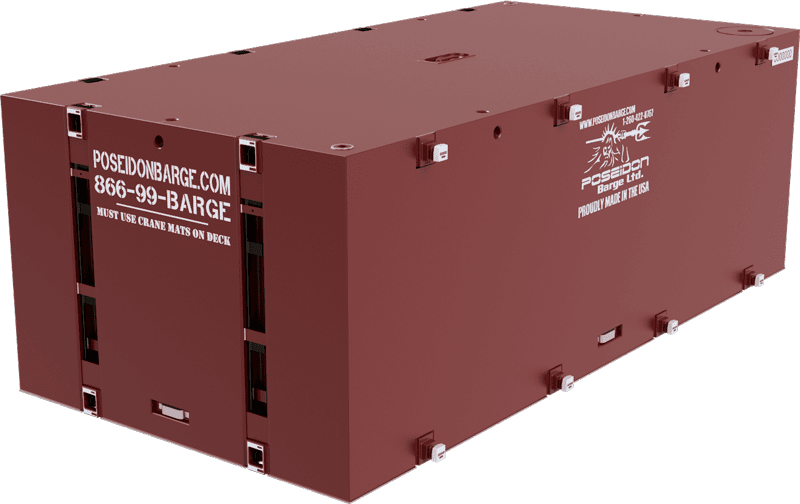

- 10’ x 7’ x 20’ Barge – 18,500 lbs.
- 10’ x 7’ x 10’ Rake – 8,750 lbs.

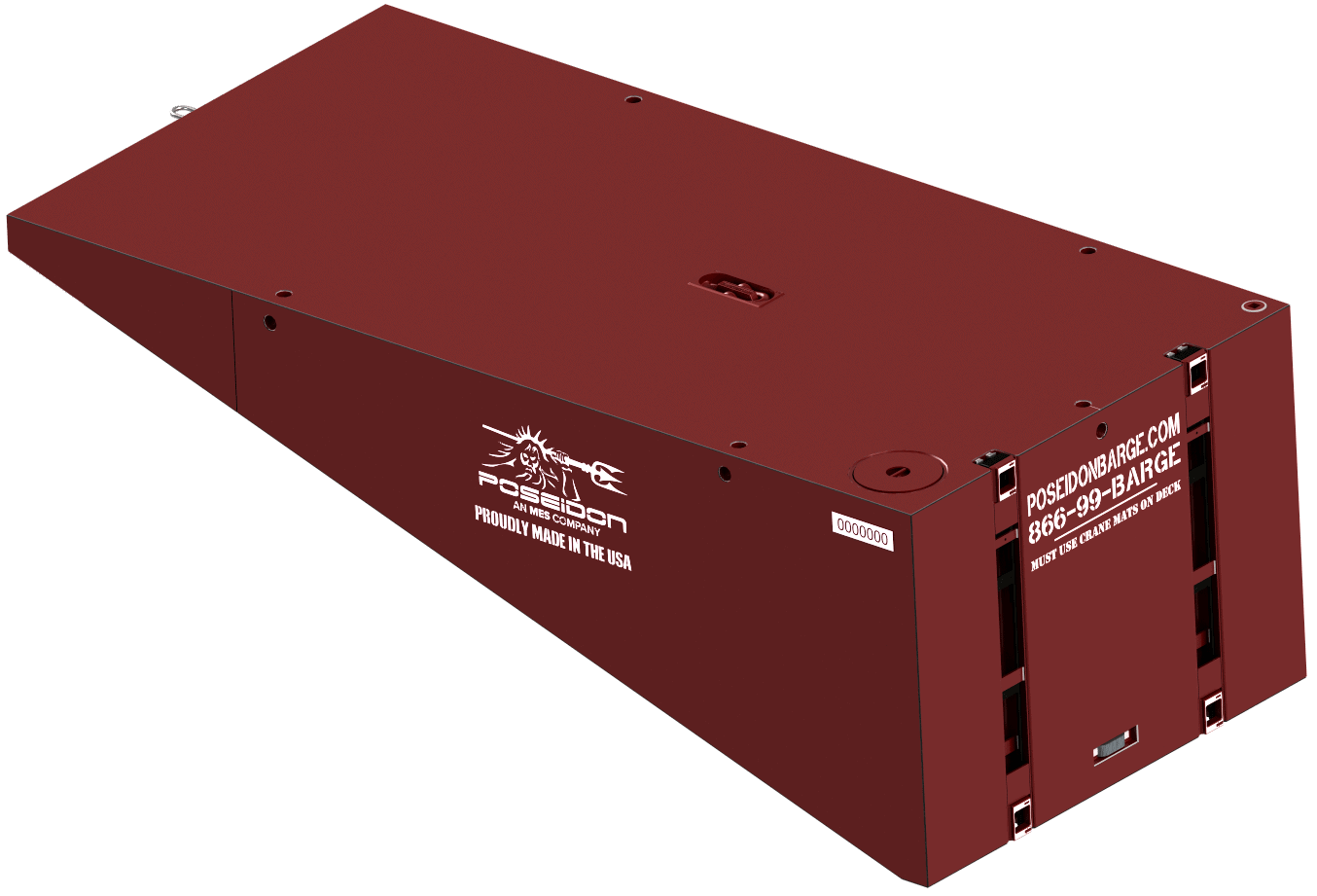

- 10’ x 7’ x 20’ Ramp – 13,000 lbs.
P2 Series Capacity
- 10’ x 7’ x 40’ Barge – 66,000 lbs @ 4’ draft
- 10’ x 7’ x 20’ Barge – 30,800 lbs @ 4’ draft
Spuds
- 24” x ½ ” Wall Steel Spuds in lengths from 20’ to 80’.
- External Mount Spud Pockets that can be placed anywhere there is a free set of connections.
Features & Specifications
- ¼” Steel Plate Deck Construction with 25,000 PSF Concentrated Load Capacity
- Standard 18”dia Deck Hatches
- Exterior Coated with Baril Zinc Rich Primer and Baril Top Coat for maximum corrosion protection
- Zinc Anodes are welded to the exterior for additional corrosion protection.
** Overall dimensions may be rounded for reference only. Exact shipping measurements can be requested.
