5FT Tall – P3 Series

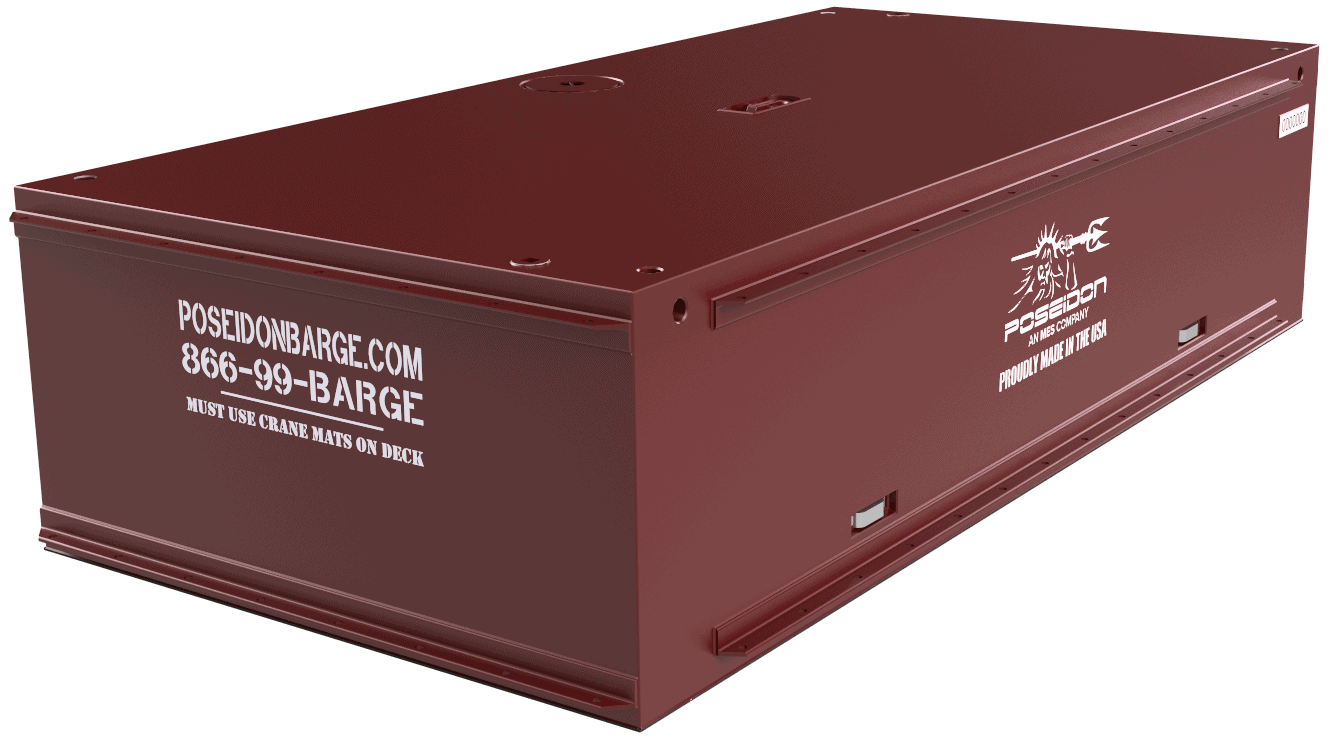

Poseidon P3 Series

The Poseidon P3 barge utilizes a rail connection system with a series of 5’ “nail pins” connecting sections together or securing accessories. This sectional barge is compatible with other 5’ sectionals available in the marketplace.

The P3 series comes in 20’ and 40’ sections. Spuds, pockets are also available.

P3 Series Weight

• P3 10’ x 5’ x 40’ Barge – 27,800 lbs.
• P3 10’ x 5’ x 20’ Barge – 16,400 lbs.

P3 Series Capacity

• P3 10’ x 5’ x 40’ Barge – 36,000 lbs @ 2’6” draft
• P3 10’ x 5’ x 20’ Barge – 18,200 lbs @ 2’6” draft

Spuds

• 18” dia x ½” Wall Steel Spuds in lengths from 20’ to 80’
• External Mount Spud Pockets that can be placed anywhere there is a free set of connections.

Features

• ¼” Steel Plate Deck Construction with 25,000 PSF Concentrated Load Capacity
• Standard 18”dia Deck Hatches installed
• Exterior Coated with Baril Zinc Rich Primer and Baril Top Coat for maximum corrosion protection
• Zinc Anodes are welded to the exterior for additional corrosion protection.

** Overall dimensions may be rounded for reference only. Exact shipping measurements can be requested.
