5FT Tall – P2 Series

Poseidon P2 Series

This sectional barge is the 5’ version of the 7’ P2 Series barge. It utilizes the familiar Male Lug and Female Connection with lock bars that are compatible with other 5’ sectionals available in the marketplace.

The P2 series comes in 20’ and 40’ sections. Rakes and ramps are available. Spuds, pockets and a variety of other accessories are also available.

P2 Series Weight

• P2 10’ x 5’ x 40’ Barge – 23,400 lbs.
• P2 10’ x 5’ x 20’ Barge – 12,900 lbs.

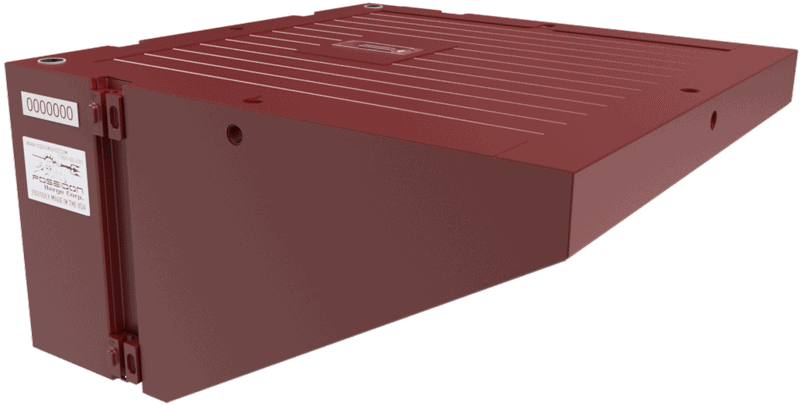

• P2 10’ x 5’ x 10’ Rake – 6,500 lbs.
• P2 10’ x 20’ x 5’ Ramp – 10,700 lbs.

P2 Series Capacity

• P2 10’ x 5’ x 40’ Barge – 39,000 lbs @ 2’6” draft
• P2 10’ x 5’ x 20’ Barge – 18,200 lbs @ 2’6” draft

Spuds

• 18” dia x ½” Wall Steel Spuds in lengths from 20’ to 80’.
• 20” dia x ½” Wall Steel Spuds in lengths from 20’ to 80’.

Features

• ¼” Steel Plate Deck Construction with 25,000 PSF Concentrated Load Capacity
• Standard 18”dia Deck Hatches installed
• Exterior Coated with Baril Zinc Rich Primer and Baril Top Coat for maximum corrosion protection
• Zinc Anodes are welded to the exterior for additional corrosion protection.

The P2 SERIES 5FT Barge is light enough to ship 2 pcs of 10’x5’x40’ sections per overwidth aluminum stepdeck trailer! (That’s double what the competition can ship per truck saving the contractor freight costs)

** Overall dimensions may be rounded for reference only. Exact shipping measurements can be requested.
