5FT Tall – P1 Series
Poseidon P1 Series
This sectional barge has cast connectors on 5’ centers down each side and on the end of the section. Each casting features a male nub and a female indentation. When the next barge or accessory is mated to it, the castings fit together. Then a 5’ “Dogbone” Connector Pin is installed to secure the sections to one another.
A unique feature of the P1 Series barges are that they are completely symmetrical in casting placement. There is no “wrong direction” when setting them into the water for a deck assembly. Castings will line up in any direction.
The P1 series comes in 20’ and 40’ sections. Rakes are available. Spuds, pockets and a variety of other accessories are also available.
P1 Series Weight
- P1 10’ x 5’ x 40’ Barge – 23,300 lbs.
- P1 10’ x 5’ x 20’ Barge – 12,800 lbs.

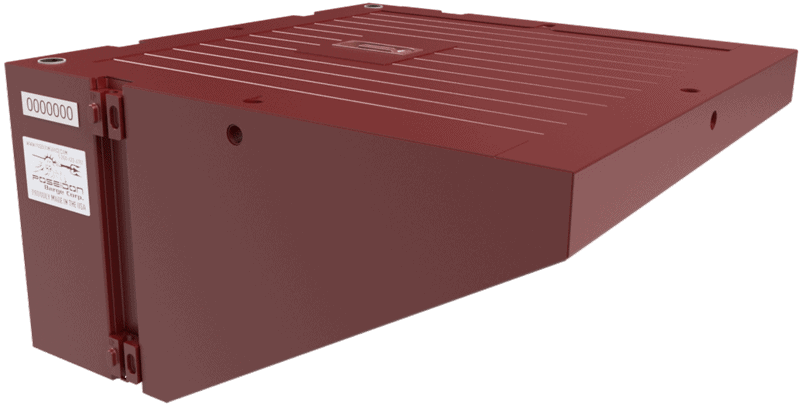

- P1 10’ x 5’ x 10’ Rake – 6,500 lbs.
P1 Series Capacity
- P1 10’ x 5’ x 40’ Barge – 39,600 lbs @ 2’6” draft
- P1 10’ x 5’ x 20’ Barge – 18,800 lbs @ 2’6” draft
Spuds
- 18” dia x ½” Wall Steel Spuds in lengths from 20’ to 80’
Features
- ¼” Steel Plate Deck Construction with 25,000 PSF Concentrated Load Capacity
- Standard 18”dia Deck Hatches installed
- Exterior Coated with Baril Zinc Rich Primer and Baril Top Coat for maximum corrosion protection
- Zinc Anodes are welded to the exterior for additional corrosion protection
The P1 SERIES 5FT Barge is light enough to ship 2 pcs of 10’x5’x40’ sections per overwidth aluminum stepdeck trailer! (That’s double what the competition can ship per truck saving the contractor freight costs)
** Overall dimensions may be rounded for reference only. Exact shipping measurements can be requested.
