4FT Narrow – P2 Series
P2 Narrow

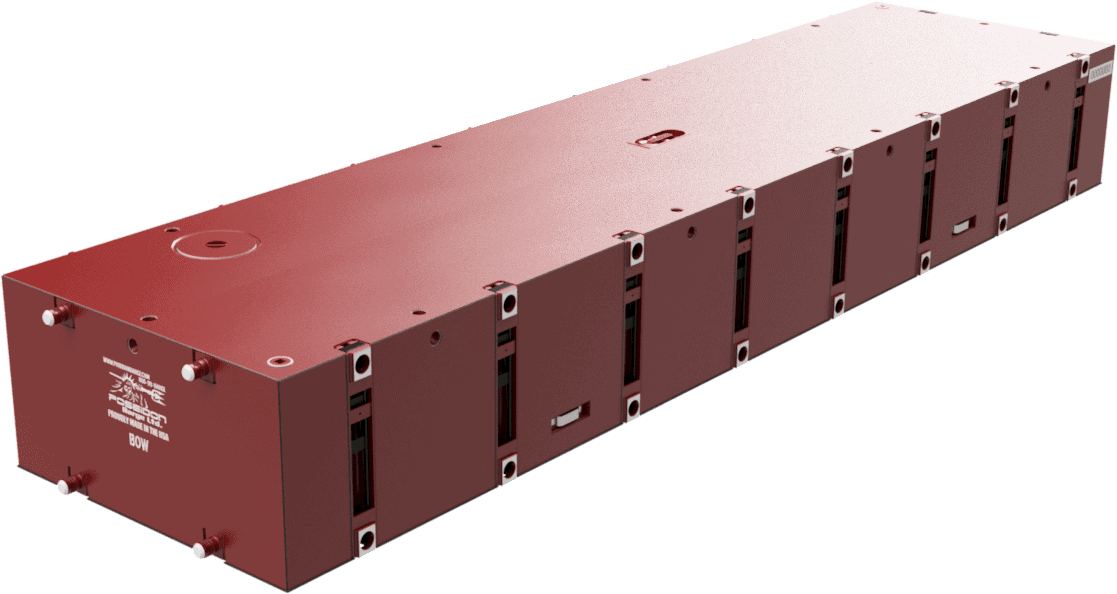

7.5′ x 4′ x 30′ Barge
Poseidon P2 Series
This sectional barge is the 4’ version of the 5’ and 7’ P2 Series barge. It utilizes the familiar Male Lug and Female Connection with lock bars. The P2 series comes in 15’ and 30’ sections.
P2 Narrow Series Weight
- P2 Narrow 7.5′ x 4′ x 30′ Barge – 15,600 lbs.
- P2 Narrow 7.5′ x 4′ x 15′ Barge – 8,500 lbs.
P2 Narrow Series Capacity
- P2 Narrow 7.5′ x 4′ x 30′ Barge – 11,400 lbs. @ 2.0 ft draft
- P2 Narrow 7.5′ x 4′ x 15′ Barge – 4,800 lbs. @ 2.0 ft draft

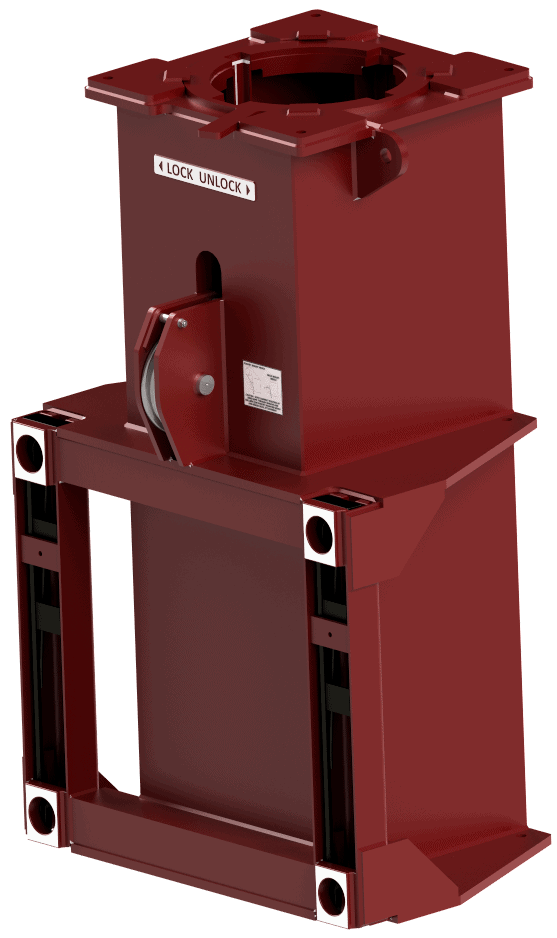

Spuds
- 20″ dia x ½” Wall Steel Spuds in lengths from 20′ to 80′
- Pockets attach to free connectors
