10FT Tall – P10 Series

Poseidon P10 Series

Poseidon’s P10 is the largest sectional barge that can travel over US Highways via semi-truck. It comes in 2 lengths: 44’ and 22’.

The Poseidon P10 series utilizes a Male Lug and Female Connection with lock bar, similar to other Poseidon sectional barges.

P10 Barge Weight

• 44’ x 11’ x 10’ Barge – 46,200 lbs.
• 22′ x 11’ x 10’ Barge – 25,500 lbs.
• 15’ x 11’ x 10’ Rake – 16,100 lbs.

P10 Barge Capacity

• 44′ x 11′ x 10′ Barge – 100,800 lbs @ 5’ draft
• 22′ x 11’ x 10’ Barge – 48,000 lbs @ 5’ draft

Spuds

• 24” x ¾” Wall Steel Spuds in lengths from 20’ to 80’.

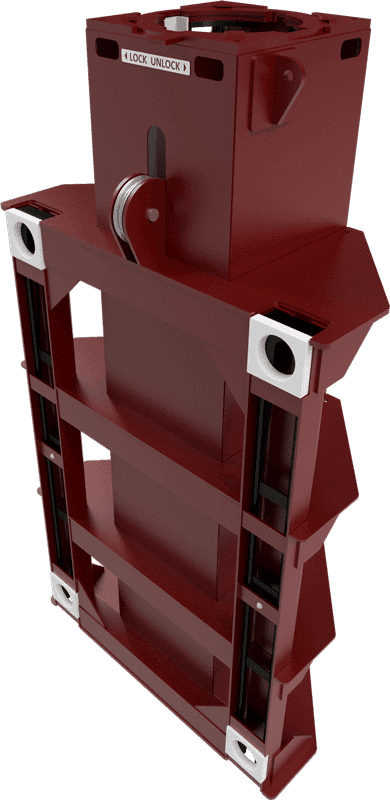

• External Mount Spud Pockets that can be placed anywhere there is a free connection.

Features & Specifications

• Patented Heavy Duty Roll Form, HSLA Steel Deck Construction with 25,000 PSF Concentrated Load Capacity
• Standard 18”dia Deck Hatches with a ladder on the interior of the barge.
• Exterior Coated with Baril Zinc Rich Primer and Baril Top Coat for maximum corrosion protection
• Zinc Anodes are welded to the exterior for additional corrosion protection.

** Overall dimensions may be rounded for reference only. Exact shipping measurements can be requested.
