Repair Kits for GX Clamps
- Replacement part kits for all “GX” style clamps
- Kits contain all necessary parts for shackle or cam/pad replacement

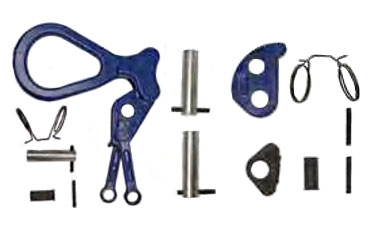

- Shackle kit includes: 1 shackle, 1 radius link, 1 T-Spring, 2 connecting links, 1 radius link pin, 3 linkage rivets, 4 Sel-Locs
- Note: Shackle kit is supplied pre-assembled for easier installation
- Cam/pad kit includes: 1 cam, 1 pad, 1 cam pin, 1 pad pin, 1 T-Spring, 1 rivet, 4 Sel-Locs
- Note: The cam and pad should be replaced at the same time
Product Description
| Catalog No. | UPC No. 020418 | Part Name | For Use With Clamp Capacity | Weight Each |
|---|---|---|---|---|
| 6506000 | 210013 | Shackle Kit | 1/2 TON | 1.00 lb |
| 6506001 | 210020 | Cam/Pad Kit | 1/2 TON | 0.50 lb |
| 6506010 | 210037 | Shackle Kit | 1 TON | 1.00 lb |
| 6506011 | 210044 | Cam/Pad Kit | 1 TON | 0.80 lb |
| 6506020 | 210051 | Shackle Kit | 2 TON | 1.00 lb |
| 6506021 | 210068 | Cam/Pad Kit | 2 TON | 1.50 lb |
| 6506030 | 210075 | Shackle Kit | 3 TON | 6.00 lb |
| 6506031 | 210082 | Cam/Pad Kit | 3 TON | 4.00 lb |
| 6506050 | 210099 | Shackle Kit | 5 TON | 15.00 lb |
| 6506051 | 210105 | Cam/Pad Kit | 5 TON | 4.50 lb |
