PL
LATCH ORDERING INSTRUCTIONS
- Specify PL, PL-N, or PL-O latch kit stock number from charts below.
- Specify capacity of hook to which latch will be assembled.
- Specify hook material (carbon or alloy).
- Hot dip galvanized.
- Heavy duty latch with easy operating features.
- Flapper lever indicates locked or unlocked position.
- Assembly instructions included with each latch.
- Meets the intent of OSHA Rule 1926.1431(g) and 1926.1501(g) (when secured with the bolt, nut, and pin) for lifting personnel.
Product Description

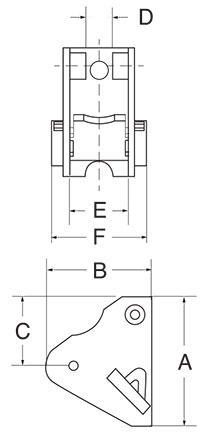

| Hook Size (t) | Hook ID Code | PL Latch Kit Stock No. | Weight Each (lbs) | Dimensions (in.) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Carbon | Alloy | A | B | C | D | E | F | |||
| 3 | 4-1/2 | †I | 1093711 | .54 | 2.57 | 2.34 | 1.94 | .56 | 1.13 | 2.00 |
| 5 | 7 | †J | 1093712 | .66 | 3.00 | 2.34 | 2.00 | .63 | 1.38 | 2.22 |
| 7-1/2 | 11 | †K | 1093713 | 1.00 | 3.63 | 2.77 | 2.38 | .63 | 1.63 | 2.38 |
| 10 | 15 | †L | 1093714 | 1.25 | 4.00 | 3.22 | 2.69 | .63 | 1.88 | 3.38 |
| 15 | 22 | †N | 1093715 | 2.96 | 5.31 | 4.00 | 2.91 | .84 | 2.38 | 3.44 |
| 20 | 30 | O | 1093716 | 4.05 | 6.00 | 4.44 | 3.19 | 1.06 | 2.88 | 4.25 |
| 25 | 37 | P | 1093717 | 8.63 | 7.00 | 6.63 | 4.06 | 2.24 | 4.50 | 6.12 |
| 30 | 45 | S | 1093718 | 10.00 | 6.75 | 7.00 | 4.03 | 2.24 | 4.75 | 6.38 |
| 40 | 60 | T | 1093719 | 14.30 | 8.00 | 7.66 | 4.38 | 3.46 | 5.50 | 7.25 |
| 50 | 75 | U | 1093720 | 27.00 | 9.88 | 8.19 | 5.13 | 3.38 | 6.50 | 8.88 |
| – | 100—150 | W—X | 1093721 | 33.25 | 10.88 | 11.06 | 6.38 | 3.38 | 7.50 | 10.00 |
| – | 200 | Y | 1093723 | 45.00 | 11.88 | 11.19 | 6.38 | 3.38 | 8.75 | 11.25 |
| – | 300 | Z | 1093724 | 55.00 | 12.50 | 12.19 | 8.00 | 3.38 | 9.75 | 13.00 |
The PL latch will not work on 319N, 320N, or 322N hooks. The PL-N/O latches, in the sizes available, will work on both the old and new style hooks.
