Overhaul Ball and Pin Assembly
Replacement and substitute assemblies are available. From 40 to 1200 pounds per assembly, the ball and pin can be changed out to change the existing ball weight or to replace damaged parts. Please contact Gunnebo Johnson Customer Service for assistance in obtaining the correct assemblies as follows:
1-800-331-5460
918-832-8933
sales@gjcorp.com
To order, please specify:
- Ball title
- If 35 lbs. size, specify choice of 1″ or 1 1/4 diameter pin
Product Description

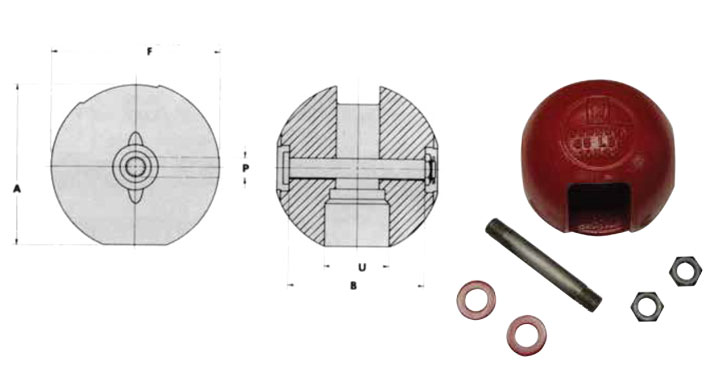

| Model No. | Wt. | A Overall Length | B Net Length | F Ball Dia. | P Pin Dia. | U Hole Diameter |
|---|---|---|---|---|---|---|
| OB 35 BALL & PIN | 37 | 6.875 | 5.312 | 7.5 | 1 | 3.5 |
| OB 35 BALL & PIN | 38 | 6.875 | 5.312 | 7.5 | 1.25 | 3.5 |
| OB 85 BALL & PIN | 89 | 8.5 | 7.125 | 9.5 | 1.25 | 4.75 |
| OB 150 BALL & PIN | 154 | 10.5 | 8.875 | 11.25 | 1.25 | 4.75 |
| OB 200 BALL & PIN | 205 | 11.25 | 9.75 | 12 | 1.25 | 4.75 |
| OB 350 BALL & PIN | 365 | 13.625 | 11.25 | 14.5 | 1.625 | 5.5 |
| OB 650 BALL & PIN | 660 | 16.75 | 14.25 | 17.937 | 1.625 | 6.875 |
| OB 1150 BALL & PIN | 1161 | 16.5 | 18 | 21.625 | 1.625 | 6.875 |
