Midget Swiveling Overhaul Balls Type 4 and 7
Gunnebo Johnson midget swiveling models have an advantage in size, as they are usually short in overall length. The basic eye-top model is just 13-1/2 inches long, for tight fit applications. A jawtop is also available, utilizing a pin connection.
3 ton capacity; 4 to 1 design factor; 39 through 42 lbs. weight
Key to Midget Swiveling Overhaul Ball Model Numbers
OB – Overhaul Ball
3JEM – Swivel model
28 – Ball weight only
4 – Type
To order, please specify:
- Model number
Product Description

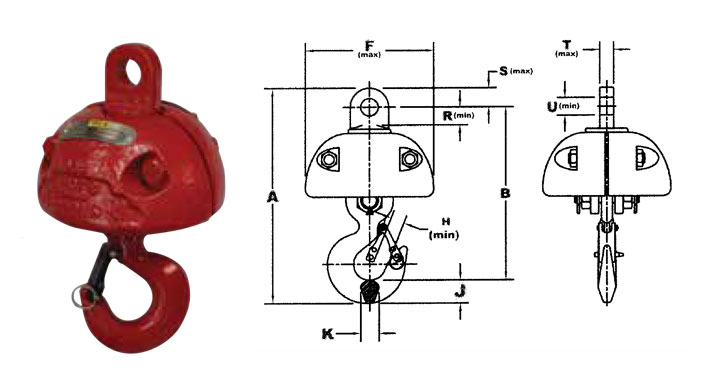

| Model | WLL (US Tons) | Wt. (lbs) | A Overall Length | B Net Length | F Ball Dia. | H (w/Latch) Throat Opening | J Hook Thickness | K Hook Width | P Pin Diam | Q Pin to End of Fitting | R Pin to Obstruction | S Pin to End of Fitting | T Thickness of Eye | U Hole Dia. | V Ear Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OB-3JEM-28-4 | 3 | 38 | 13.31 | 10.65 | 7.94 | 1.1 | 1.44 | 1.12 | – | – | 1.23 | 1.22 | 0.91 | 1.03 | – |
| OB-3JJM-28-7 | 3 | 38 | 13.55 | 10.9 | 7.94 | 1.1 | 1.44 | 1.12 | 1 | 0.97 | 1.08 | 1.22 | – | – | 0.5 |
