Impact Cable Cutters
The original portable tools invented in 1928 by Morse-Starrett to cut wire rope. Actuated by striking with a hammer, they are easy to operate and give superior performance without jamming. They are precision-engineered to deliver a clean cut without affecting the original roundness of the wire rope. The blades and dies are made of the finest tool steel available, heat-treated, and ground to close tolerances.

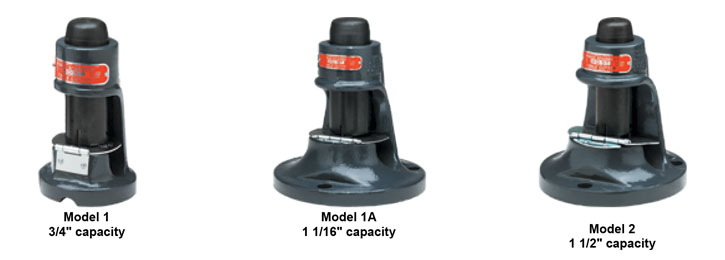

Model 1 (light duty)
| Part | Description | Weight |
|---|---|---|
| 101 | Cutter complete | 8 lbs. |
| 102 | Casting base | 4 lbs. |
| 103 | Plunger | 3 lbs. |
| 104 | Die (set) | 4 oz. |
| 105 | Blade (with pin) | 2 oz. |
| 106 | Blade pin only | 1 oz. |
| 107 | Plunger guide pin | 1 oz. |
| 108 | Guard | 1 oz. |
| 109 | Warning decal |
Model 1A (heavy duty)
| Part | Description | Weight |
|---|---|---|
| 121 | Cutter complete | 17 lbs. |
| 122 | Casting base | 12 lbs. |
| 123 | Plunger | 4 lbs. |
| 124 | Die (set) | 7 oz. |
| 125 | Blade (with pin) | 2 oz. |
| 126 | Blade pin only | 1 oz. |
| 127 | Plunger guide pin | 1 oz. |
| 128 | Guard | 2 oz. |
| 129 | Warning decal |
Model 2 (extra heavy duty)
| Part | Description | Weight |
|---|---|---|
| 131 | Cutter complete | 28 lbs. |
| 132 | Casting base | 21 lbs. |
| 133 | Plunger | 7 lbs. |
| 134 | Die (set) | 10 oz. |
| 135 | Blade (with pin) | 5 oz. |
| 136 | Blade pin only | 1 oz. |
| 137 | Plunger guide pin | 1 oz. |
| 138 | Guard | 3 oz. |
| 139 | Warning decal |
