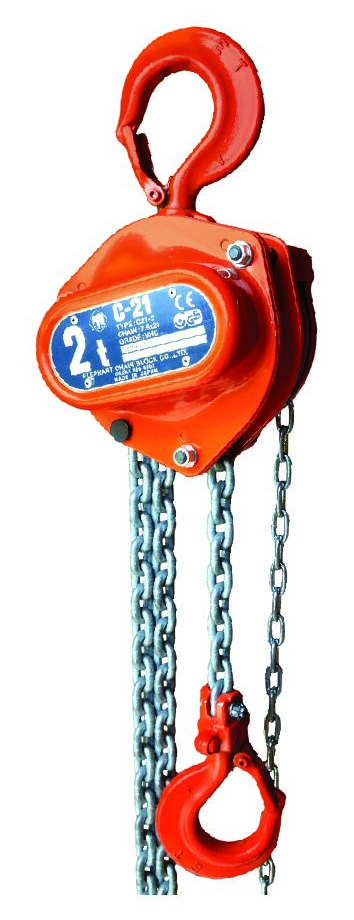

Skip to main contentSkip to footerC-21 Manual Chain Hoist
- Grade 105 galvanized load chain, which adheres to the strict German DIN 5684 standard
- Zinc plated hand chain
- Heavy duty frame
- Lightweight lifting capacity ratio, a 1 ton unit with 10′ lift weighs 20% less than other Japanese hoists
- Long lasting friction discs
- Extremely wear resistant
- Load chain, hooks, and braking parts have a safety factor of 4+ times. 0.5t – 1t units have a safety factor of 5+ times.
- Durable powder coat finish
- Suitable for operation within a -20º to +130º C, -4º to 266ºF temperature range
Specifications
| Model | Max working load (lbs) | Max working load (mt) | Standard Lift (ft) | Manufacturer's Test Load | Headroom (in) Dim. A | Hand Effort to Lift Full Working Load (lbf) | Load Chain | Hand Chain | Net Weight (lbs) |
|---|
| Dia. X Pitch (mm) | No. of Falls | Dia. X. Pitch (mm) |
|---|
| C21-0.5 | 1100 | 0.5 | 10 | 150% Max working load | 10.9 | 57.3 | 4.3 x 12 | 1 | 4.5 x 23.0 | 15 |
| C21-1 | 2200 | 1 | 10 | 150% Max working load | 12.2 | 70.6 | 5.6 x 17 | 1 | 4.5 x 23.0 | 22 |
| C21-1.5 | 3500 | 1.5 | 10 | 150% Max working load | 13.4 | 72.8 | 6.5 x 19 | 1 | 4.5 x 23.0 | 28 |
| C21-2 | 4400 | 2 | 10 | 150% Max working load | 15 | 72.8 | 7.5 x 21 | 1 | 4.5 x 23.0 | 37 |
| C21-3 | 6600 | 3 | 10 | 150% Max working load | 18.9 | 83.8 | 6.5 x 19 | 2 | 4.5 x 23.0 | 43 |
| C21-5 | 11000 | 5 | 10 | 150% Max working load | 21.9 | 74.9 | 7.5 x 21 | 3 | 4.5 x 23.0 | 75 |
Dimensions (IN)
| Capacity | A | B | C | D | E | F | G | H | I | N |
|---|
| C21-0.5 | 10.9 | 5.2 | 2.2 | 3 | 4.8 | 1.2 | 1.4 | 0.63 | 0.51 | 0.95 |
| C21-1 | 12.2 | 5.7 | 2.4 | 3.3 | 5.8 | 1.4 | 1.7 | 0.87 | 0.63 | 1.2 |
| C21-1.5 | 13.4 | 6 | 2.7 | 3.3 | 6.6 | 1.4 | 1.7 | 1 | 0.83 | 1.2 |
| C21-2 | 15 | 6.5 | 3 | 3.5 | 7.6 | 1.7 | 2.1 | 1.2 | 0.87 | 1.4 |
| C21-3 | 18.9 | 9 | 2.7 | 3.3 | 8.2 | 1.7 | 2.1 | 1.4 | 1.1 | 1.4 |
| C21-5 | 21.9 | 6.5 | 3 | 3.5 | 11.7 | 2.3 | 2.8 | 1.8 | 1.3 | 1.8 |
Warning: Elephant's Original Long-Life Chain must be used for this hoist!
