Galvanized Clips

1000-G Forged

The efficiency rating of a properly installed clip is based upon the catalog breaking strength of wire rope. The efficiency rating for clip sizes 1/8” through 7/8” is 80% and for sizes 1” through 2” is 90%. When a pulley is used in place of thimble for turning back the rope, one additional clip should be added.

The minimum number of clips shown in the table is based on using right or lang lay wire rope, 6×19 class, or 6×37 class, IWRC or fiber core, IPS, or EIPS. If Seale construction or similar large outer wire type construction in the 6×19 class is being used for 1” and larger wire rope, one additional clip should be added.

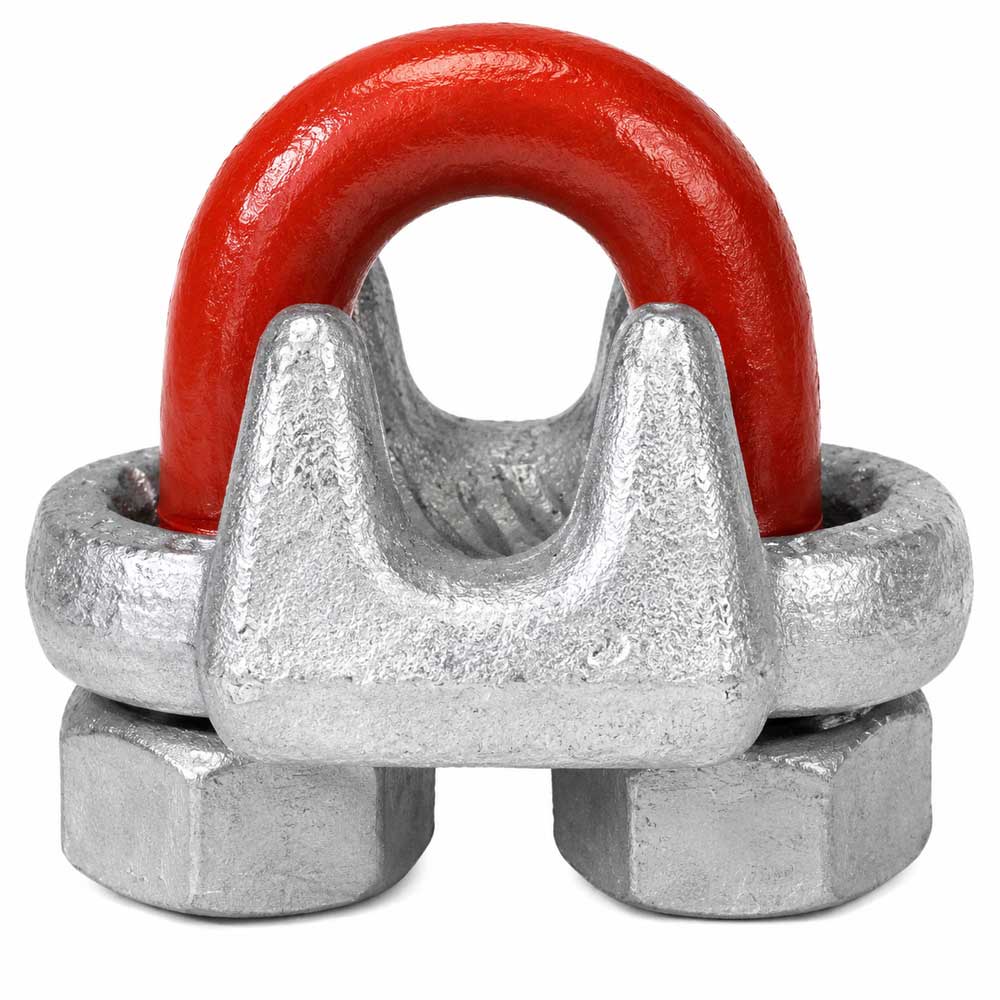

Forged Wire Rope Clips, 1000-G

  • Base is drop-forged carbon steel
  • Hot galvanized to ASTM A-153 to resist rust and corrosion
  • U-Bolts are colored blue for identification purposes and use heavy duty hex nuts (UNC-2A)
  • Designed to meet federal specifications, FF-C-450, type 1, class 1
  • Designed to meet or exceed all requirements of ASME B30.26 including: identification, ductility, design factor and temperature
  • Permanently marked with size and manufacturer
  • Sizes 1/4” and above marked with USA and date code
  • Sizes 1/8” through 1-1/4” are supplied bagged and disassembled
  • Note: see application and warning information

1000-G Forged

Clip SizeMinimum No. of ClipsL
Amount of Rope to Turn Back		Torque Foot Weight
in.mmin.mm.lbkg
1/8323 1/28952
3/1652410284
1/4625127157
5/16825 1/21403014
3/81026 1/21654520
7/1611271786530
1/213311 1/22926530
9/16143123059543
5/8163123059543
3/41941845713059
7/822419483225102
125526660225102
1 1/829634864225102
1 1/4327441118360163
1 1/2388541372360163
1 3/4448611549590268
2518711803750341
NOTE: If more clips are used than specified in the table above, the amount of rope turnback should be increased accordingly. The data above based on use of Campbell forged wire rope clips on new rope.

Forged Wire Rope Clips, 1000-G

For Rope DiameterCatalog No.UPC No. 020481Min. Clips RequiredClips Per BoxA Dim.B Dim.C Dim.D Dim.E Dim.G Dim.H Dim.Weight Each
1/8 in699023409990821007/32 in3/4 in7/16 in9/16 in7/16 in29/32 in1-1/16 in0.08 lb
3/16 in699033409991521001/4 in15/16 in9/16 in5/8 in1/2 in15/16 in1-1/8 in0.10 lb
1/4 in699043409992221005/16 in1-1/32 in5/8 in23/32 in21/32 in1-1/8 in1-7/16 in0.18 lb
5/16 in699053409993921003/8 in1-5/16 in13/16 in7/8 in3/4 in1-5/16 in1-11/16 in0.32 lb
3/8 in69906340999462757/16 in1-1/2 in15/16 in1 in29/32 in1-9/16 in11-15/16 in0.48 lb
7/16 in69907340999532501/2 in2 in1-1/8 in1-1/8 in1 in1-11/16 in2-1/4 in0.72 lb
1/2 in69908340999603501/2 in2 in1-1/8 in1-1/8 in1-1/16 in1-13/16 in2-1/4 in0.76 lb
9/16 in69909340999773509/16 in2-3/8 in1-3/8 in1-1/4 in1-9/32 in1-15/16 in2-7/16 in0.96 lb
5/8 in69910340999843259/16 in2-3/8 in1-1/2 in1-1/4 in1-9/32 in2-1/16 in2-7/16 in1.05 lb
3/4 in69912340999914255/8 in2-3/4 in1-1/2 in1-1/2 in1-1/2 in2-5/16 in2-13/16 in1.60 lb
7/8 in69914341000004253/4 in3-1/8 in1-7/8 in1-3/4 in1-17/32 in2-1/2 in3-1/4 in2.40 lb
1 in69916341000175253/4 in3-1/2 in2-1/32 in1-7/8 in1-3/4 in2-3/4 in3-3/8 in2.70 lb
1-1/8 in69918341000246103/4 in3-7/8 in2-1/8 in2-1/32 in1-29/32 in3 in3-5/8 in3.40 lb
1-1/4 in69920341000317107/8 in4-1/4 in2-3/8 in2-1/4 in2-7/32 in3-1/4 in4 in4.60 lb
1-1/2 in69924341000488107/8 in4-15/16 in2-1/4 in2-9/16 in2-9/16 in3-1/2 in4-3/8 in6.00 lb
1-3/4 in6992834100055811-1/8 in5-13/16 in2-3/4 in3-1/16 in2-3/4 in3-3/4 in5-5/16 in9.00 lb
26993234100062811-1/4 in6-1/2 in3 in3-3/8 in3-1/8 in4-1/4 in5-7/8 in13.00 lb
