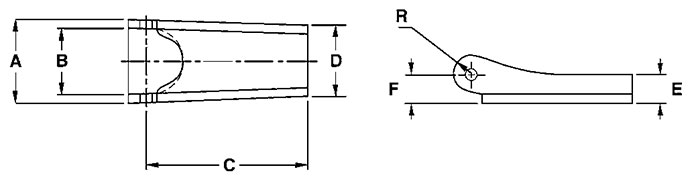

BTC Latch
Campbell offers latches already assembled to the hook as well as kits for field installation.
- Clapper latches are zinc-plated
- Spring spacer adapts latch to hooks with narrow cam
- Bolt and nut permit fast, easy installation
READ AND UNDERSTAND THESE WARNINGS AND INSTRUCTIONS BEFORE USING HOOK AND LATCH.
IMPORTANT: Instructions For Use
- Always inspect the hook and latch before using.
- Always make sure the spring forces the latch against the point of the hook.
- Check the load before lifting to make sure the hook (not the latch) is supporting the load.
- To assemble latches on hooks, follow instructions supplied with kit.
Product Description
| Size | Size No. | 916-G Kit | Universal Kit | Dimensions (in) | Weight/100 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm | Cat. No. | UPC No. 020418 | Cat. No. | UPC No. 020418 | A | B | C | D | E | F | R | lb | kg | |
| 1/4 | 6 | 2-22 | 3990101 | 072727 | 3991401 | 177088 | 23/32 | 9/16 | 1-1/4 | 5/8 | 1/4 | 1/4 | 5/32 | 3.3 | 1 |
| 5/16 | 8 | 3-23 | 3990201 | 072734 | 3991402 | 177095 | 23/32 | 9/16 | 1-3/8 | 39/64 | 1/4 | 1/4 | 5/32 | 3.7 | 2 |
| – | – | 4-24 | 3990301 | 072741 | 3991403 | 177101 | 15/16 | 25/32 | 1-17/32 | 15/16 | 9/32 | 9/32 | 3/16 | 5 | 2 |
| 3/8 | 10 | 5-25 | 3990401 | 072758 | 3991404 | 177118 | 15/16 | 25/32 | 1-11/16 | 15/16 | 9/32 | 9/32 | 3/16 | 5.6 | 3 |
| – | – | 6-26 | 3990501 | 072765 | – | – | 15/16 | 25/32 | 1-31/32 | 15/16 | 9/32 | 9/32 | 3/16 | 6.2 | 3 |
| 7/16 | 11 | 7-27 | 3990601 | 072772 | 3991405 | 177125 | 15/16 | 25/32 | 1-7/8 | 15/16 | 9/32 | 9/32 | 3/16 | 6.5 | 3 |
| – | – | 8-28 | 3990701 | 072789 | – | – | 1-9/32 | 1 | 2-3/8 | 1-9/32 | 3/8 | 9/16 | 17/64 | 12 | 5 |
| 1/2 | 13 | 9-29 | 3990801 | 072796 | 3991406 | 177132 | 1-9/32 | 1 | 2-11/16 | 1-9/32 | 3/8 | 9/16 | 17/64 | 16.5 | 7 |
| – | – | 10-30 | 3990901 | 072802 | – | – | 1-9/32 | 1 | 2-31/32 | 1-9/32 | 3/8 | 9/16 | 17/64 | 18.2 | 8 |
| 5/8 | 16 | 11-31 | 3991001 | 072819 | 3991407 | 177149 | 1-9/32 | 1 | 3-7/32 | 1-9/32 | 3/8 | 9/16 | 17/64 | 36 | 16 |
| – | – | 12-32 | 3991101 | 072826 | 3991408 | 177156 | 2 | 1-17/32 | 3-7/16 | 1-5/8 | 9/16 | 23/32 | 3/8 | 52 | 24 |
| – | – | 34 | – | – | 3991409 | 177163 | 2-3/16 | 1-3/4 | 4-11/32 | 1-3/4 | 9/16 | 11/16 | 13/32 | 70.7 | 32 |
Warning:
• Failure to follow the instructions for use and these warnings may cause death or serious injury.
• Loads may disengage from hook if proper procedures are not followed.
• A falling load may cause serious injury or death.
• The load must never be supported by the latch.
• Latches must always be inspected for wear or damage before use. If worn, distorted, or damaged, discard and replace.
• Always stand clear of loads being lifted.
