Grade 80 – Cam-Alloy Chain Sling Single and Double Endless Basket
Cam-Alloy steel chain is electrically welded alloy steel embodying the latest manufacturing technology. Alloy provides a superior chain sling with high tensile strength and excellent wear resistance. The following chains meet or exceed all existing OSHA, ANSI, ASME, NACM, and ASTM specification requirements.
The Cam-Alloy chain and attachments used in fabricating Campbell chain slings offer a design factor of 4 to 1. System 8 is Campbell’s trade name for grade 80 chain. System 10 is Campbell’s trade name for grade 100 chain.
Product Description - Single Endless Basket
| Chain Size | System | Oblong Master Link | Working Load Limit at 60° | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size Material | Inside Dimensions | |||||||||
| Width | Length | |||||||||
| in. | mm | in. | mm | in. | mm | in. | mm | lb | kg | |
| 9/32 | 7 | 10 | 37/64 | 15 | 2 1/2 | 64 | 5 | 127 | 4,300 | 1,950 |
| 3/8 | 10 | 10 | 13/16 | 21 | 3 | 76 | 6 | 152 | 8,800 | 3,990 |
| 1/2 | 13 | 10 | 1 1/8 | 29 | 4 | 102 | 8 | 203 | 15,000 | 6,800 |
| 5/8 | 16 | 10 | 1 1/8 | 29 | 4 | 102 | 8 | 203 | 22,600 | 10,250 |
| 3/4 | 20 | 10 | 1 1/4 | 32 | 4 | 102 | 8 | 203 | 35,300 | 16,000 |
| 7/8 | 22 | 10 | 1 5/8 | 41 | 5 1/4 | 133 | 10 1/2 | 267 | 42,700 | 19,400 |
| 1 | 26 | 8 | 1 7/8 | 48 | 6 | 152 | 12 | 305 | 47,700 | 21,600 |
| 1 1/4 | 32 | 8 | 2 | 51 | 7 | 178 | 14 | 356 | 72,300 | 32,800 |

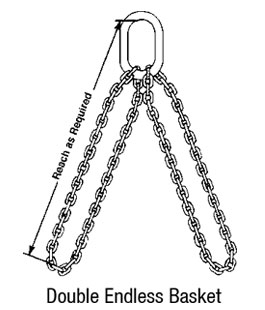

Product Description - Double Endless Basket
| Chain Size | System | Oblong Master Link | Working Load Limit at 60° | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size Material | Inside Dimensions | |||||||||
| Width | Length | |||||||||
| in. | mm | in. | mm | in. | mm | in. | mm | lb | kg | |
| 9/32 | 7 | 10 | 37/64 | 15 | 2 1/2 | 64 | 5 | 127 | 7,400 | 3,400 |
| 3/8 | 10 | 10 | 13/16 | 21 | 3 | 76 | 6 | 152 | 15,200 | 6,900 |
| 1/2 | 13 | 10 | 1 1/8 | 29 | 4 | 102 | 8 | 203 | 26,000 | 11,800 |
| 5/8 | 16 | 10 | 1 1/4 | 32 | 4 | 102 | 8 | 203 | 39,100 | 17,700 |
| 3/4 | 20 | 10 | 1 5/8 | 41 | 5 1/4 | 133 | 10 1/2 | 267 | 61,100 | 27,700 |
| 7/8 | 22 | 10 | 1 7/8 | 48 | 6 | 152 | 12 | 305 | 74,000 | 33,500 |
| 1 | 26 | 8 | 2 | 51 | 7 | 178 | 14 | 356 | 82,600 | 37,900 |
| 1 1/4 | 32 | 8 | 2 1/4 | 57 | 8 | 203 | 16 | 406 | 125,200 | 56,800 |
Dimensions are approximate. These items are made to order.
Warning!
To prevent the possibility of serious bodily injury:
DO NOT EXCEED the working load limits for chain or components.
DO NOT USE for overhead lifting or hoisting.
DO NOT USE if the chain or components are visibly distorted or worn.
