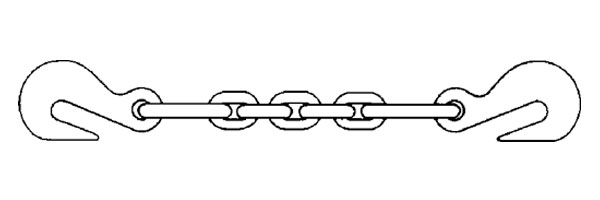

Grade 80 – Cam-Alloy Chain Shortener
Cam-Alloy steel chain is electrically welded alloy steel embodying the latest manufacturing technology. Alloy provides a superior chain sling with high tensile strength and excellent wear resistance. The following chains meet or exceed all existing OSHA, ANSI, ASME, NACM, and ASTM specification requirements.
The Cam-Alloy chain and attachments used in fabricating Campbell chain slings offer a design factor of 4 to 1. System 8 is Campbell’s trade name for grade 80 chain. System 10 is Campbell’s trade name for grade 100 chain.
Product Description
| Chain Size | System | Reach | Working Load Limit | ||
|---|---|---|---|---|---|
| in. | mm | lb | kg | ||
| 9/32 | 7 | 10 | 1’1″ | 4,300 | 1,950 |
| 3/8 | 10 | 10 | 1’3″ | 8,800 | 4,000 |
| 1/2 | 13 | 10 | 1’8″ | 15,000 | 6,800 |
| 5/8 | 16 | 10 | 2’0″ | 22,600 | 10,300 |
| 3/4 | 20 | 10 | 2’4″ | 35,300 | 16,000 |
| 7/8 | 22 | 10 | 2’8″ | 42,700 | 19,400 |
| 1 | 26 | 8 | 3’1″ | 47,700 | 21,600 |
| 1 1/4 | 32 | 8 | 3’10” | 72,300 | 32,800 |
