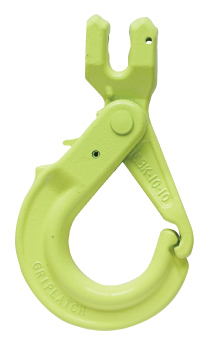

Clevis Self Locking Grip Latch Hook
- Hook latch & bowl interlock for more stability from inadvertent side impact
- Stainless steel spring release trigger will only operate when hook is unloaded
- Full traceability
- Proof-tested to 2 ½ times working load limit
Product Description
| Model | Chain Size (in) | WLL *(lbs) at 90° | L Dim. | B Dim. | G Dim. | H Dim. | Weight Each (lbs) |
|---|---|---|---|---|---|---|---|
| GBK-8-10 | 5/16 | 5700 | 4.7 | 1.5 | 0.79 | 0.87 | 1.8 |
| GBK-10-10 | 3/8 | 8800 | 5.9 | 1.9 | 0.94 | 1.1 | 2.9 |
| GBK-13-10 | 1/2 | 15000 | 6.8 | 2.1 | 1.1 | 1.4 | 5.3 |
| GBK-16-10 | 5/8 | 22600 | 8.5 | 2.4 | 1.5 | 2.0 | 12.3 |
